STEAM SMOKE CHAMBERS

The steam-smoking method further developed by AUTOTHERM is especially suitable for effective production of hot-smoked products.


The transfer of smoke by means of condensation on the products to be treated achieves fast and uniform smoking with incomparably low weight losses.

The smoke colour of the products treated with STEAM-SMOKE is extremely colour stable and cannot be washed off either with water or with steam.

The steam and smoke mixture is soot-free and carcinogenic benzo(a)pyrene is hardly detectable.


The lower weight loss compared to traditional smoking methods makes this process extremely economical and the payback period extremely short. These advantages have also been confirmed by independent institutes.

The short smoking times enable a steam smoke generator to be connected to up to three smoking units (with max.4 trolley); this cuts the investment costs. The microprocessors controls the smoke supply to the three units fully automatically. All units are available with waste gas cleaning systems (catalytic afterburner, filtersystem or condenser).

Dampfrauchanlage Autotherm
Dampfrauchanlage Autotherm
Dampfrauchanlage Autotherm
Dampfrauchanlage Autotherm
Dampfrauch-Prinzip

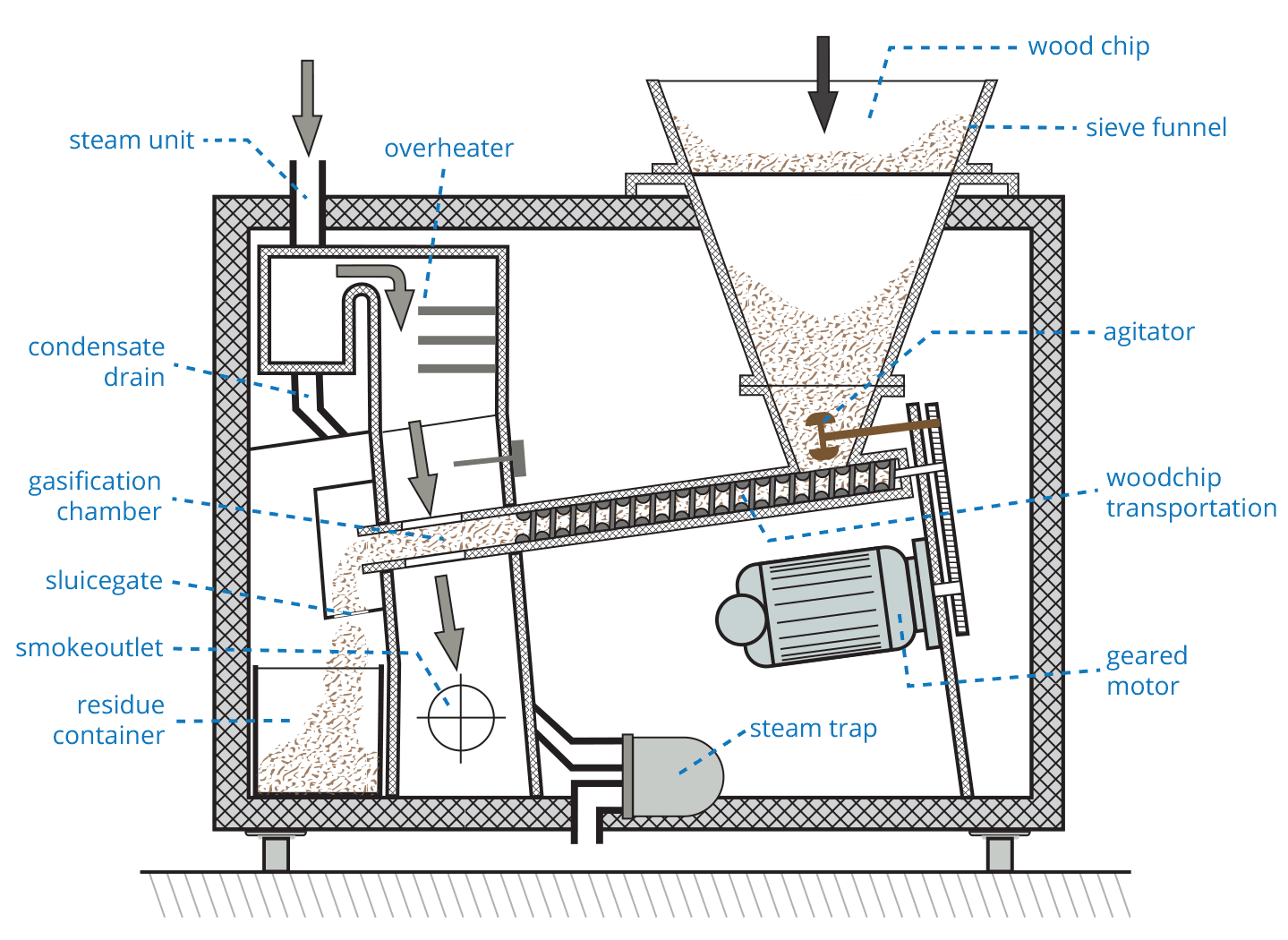

The steam-smoke generator principle

Autotherm steam smoke generator principle

Steamsmoke is procuced by means of superheated steam, which penetrates the wood chips. All color and flavoring ingredients of the chips are extracted and conducted into the chamber as steam smoke.

​

Steam-smoke:
• fast
• color proof
• minimal weight loss
• accurate regulation

Due to the extremely short smoking times of the AUTOTHERM steam-smoke process and the natural moisture, the steam-smoke reduces smoking times by up to 40% and weight losses by up to 3% compared to conventional smoke systems.

EXAMPLE:

3 trolleys
AUTOTHERM steam smoke chamber
3 x 200 kg = 600 kg/batch
8 h/day= 4 batches x 600 kg = 2400 kg
with 3% less weight loss, this means:
3% of 2,400kg = 72kg/days x 2.50 €/kg
= 180.00 €/day = 3,865.00 €/month
= 45.360,00 €/year

Dampfrauchanlage Autotherm

APPLICATIONS

  • cooked or boiled sausages

  • Hot-smoked meat and sausage, products such as Frankfurters, Lyoner, Wiener and Knacker sausages

  • Kassler (gammon), cooked ham

PROCESSES

  • Reddening

  • Drying

  • Smoking

  • Cooking

SPECIFICATIONS

  • Temperature range:
    +50°C to +90°C

  • Relative humidity: up to 99%

  • Other values possible on request!
